Cap Embroidery Problems: Complete Troubleshooting Guide 2026
Published August 5, 2026 | By USA Digitizing Pro Team
A cap coming off the embroidery machine looking wrong is almost never bad luck. Cap embroidery problems nearly always trace back to a specific, identifiable cause, most often something in the digitizing file rather than the machine itself. This guide works through every major problem a cap order runs into, from puckering to bird nesting to text that reads illegible, matching each one to its actual cause and the specific fix, so a buyer or small shop can diagnose an issue instead of guessing at it.
Quick Answer at a Glance
| Problem | Most Common Cause |
|---|---|
| Puckering around the design | Underlay or density not matched to cap fabric and curve |
| Design looks stretched or warped | Digitizing didn’t account for the cap’s curved panel structure |
| Thread breaks mid stitch | Stitch density too high or poor pull compensation in the file |
| Bird nesting (thread tangle underneath) | Tension imbalance combined with a digitizing file that isn’t cap optimized |
| Logo shifted or misaligned | Hooping error or a file not centered correctly for the placement |
| Text too small to read clearly | Lettering digitized below the minimum readable stitch size for caps |
| Colors bleeding into each other | Insufficient underlay or stitch order not planned to separate color blocks |
Why Cap Embroidery Fails More Often Than Flat Garment Embroidery
A cap’s curved, structured front panel behaves nothing like a flat t shirt or polo surface. The panel pushes and pulls against the needle differently depending on where the stitch falls and a file digitized without accounting for that curve is the single biggest source of cap embroidery problems across the board. For the underlay and settings decisions that prevent most of these issues from the start, the cap digitizing services overview covers how a properly built cap file differs from a flat garment file.
Problem: Puckering Around the Design
Puckering shows up as visible fabric bunching or rippling around the stitched area once the cap comes off the hoop. On caps, this almost always traces to underlay that’s too light for the curved surface or density set too high for the fabric weight of the specific cap being used. The fix is adjusting underlay type and density specifically for the panel’s curve and fabric, not just applying flat garment settings to a cap file.

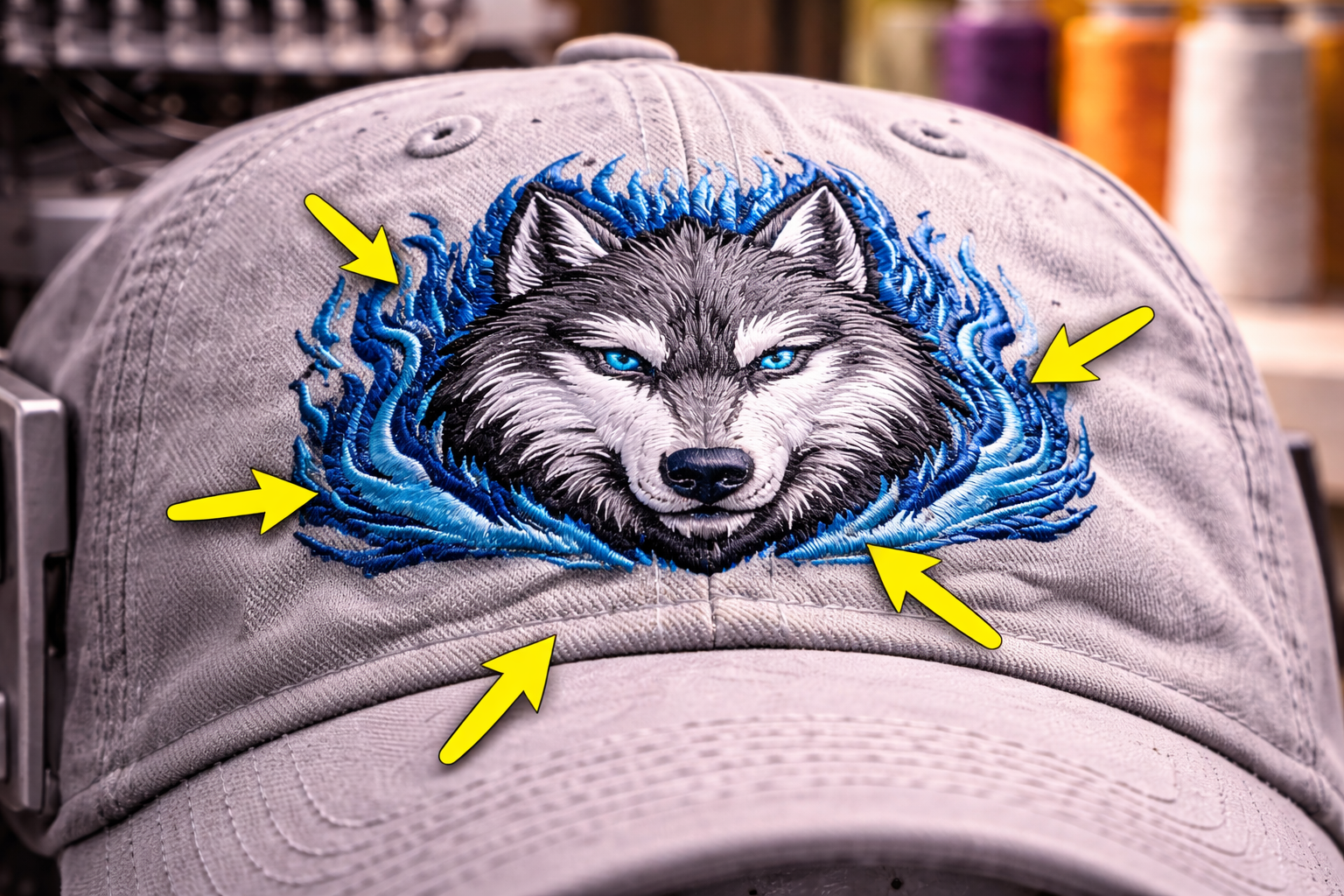

Problem: Design Looks Stretched, Warped or Off Shape

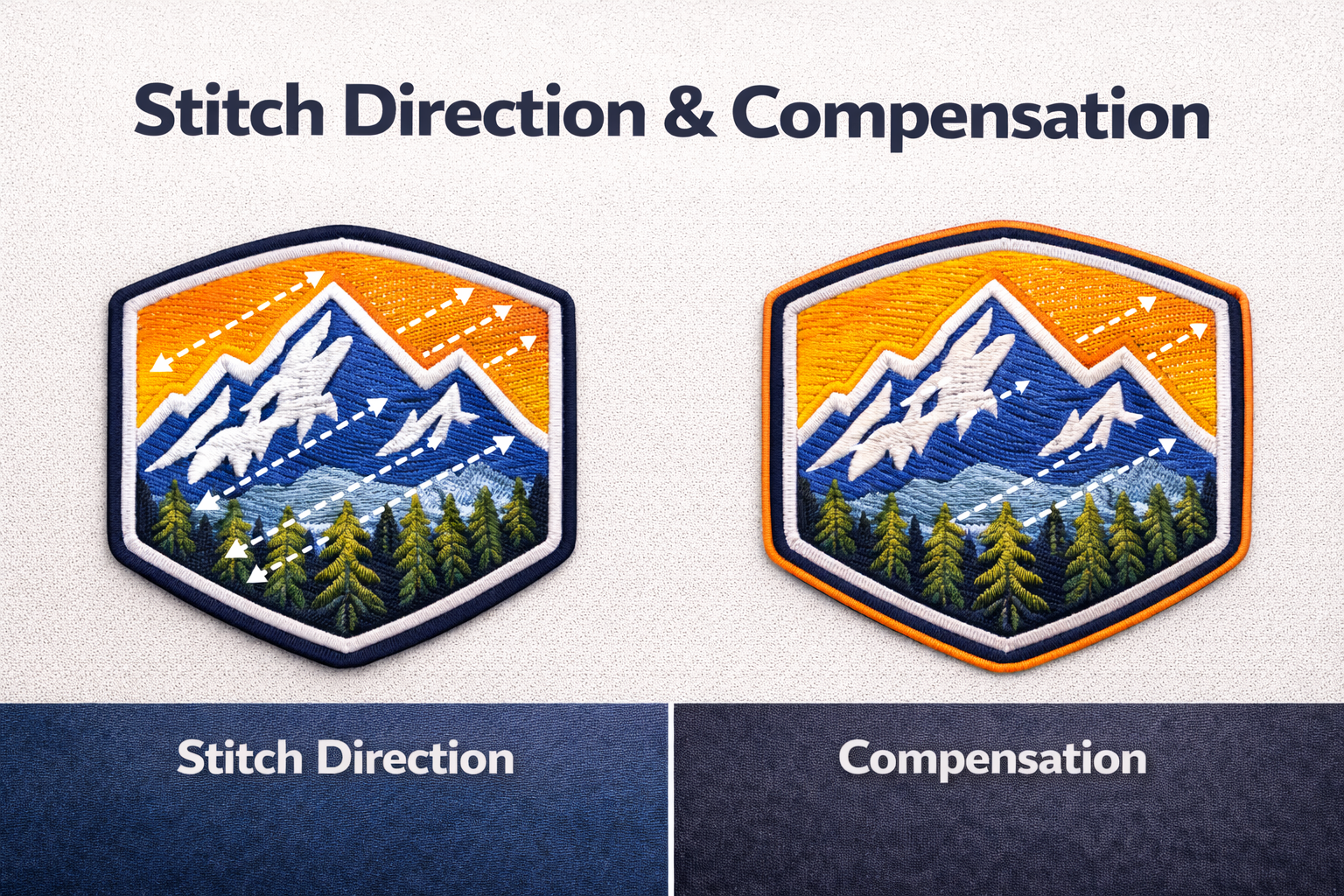

This happens when a design was digitized as if the cap surface were flat, without compensating for how the fabric will pull and curve once actually hooped on a cap frame. A properly digitized cap file builds in push and pull compensation ahead of time so the finished shape looks correct once stitched on the actual curved surface, rather than looking correct only in the flat digital preview.
Problem: Thread Breaks Mid Stitch
Frequent thread breaks during a cap run usually point to stitch density set too high for the needle and thread combination or poor pull compensation causing excess tension as the machine works around the cap’s curve. Reducing density in tightly packed areas and rebuilding pull compensation for the specific cap style being used generally resolves this without needing to change thread brand or machine settings.
Problem: Bird Nesting (Thread Tangling Underneath the Cap)
Bird nesting, a tangled mass of thread on the underside of the fabric, is often blamed entirely on machine tension, but a digitizing file that isn’t built for cap production makes it far more likely. Abrupt stitch direction changes or insufficient underlay can cause the bobbin thread to catch and tangle, especially on a curved cap panel where tension behaves less predictably than on a flat surface.
Problem: Logo Shifted or Misaligned on the Cap
A design that ends up off center or crooked is sometimes a hooping error at the machine, but it can also stem from a digitizing file that wasn’t built with the correct center point and placement guides for the specific cap style. Confirming the file includes accurate placement markers and that hooping was done to those markers, resolves most misalignment issues.
Problem: Text Too Small or Illegible Once Stitched
Lettering that reads fine on screen can turn into an unreadable blob once stitched, since embroidery has a physical minimum size below which individual letters stop registering cleanly. This is especially common on caps where placement area is already limited. The fix is either enlarging the text within the available space or simplifying the font to one with cleaner, bolder strokes that hold up at small embroidered sizes.
Problem: Colors Bleeding Into Each Other
When adjacent color blocks blur together instead of showing a clean boundary, the cause is usually insufficient underlay between color sections or a stitch order that doesn’t isolate each color block properly during production. Rebuilding the file with clearer separation and appropriate underlay between color changes keeps each block distinct once stitched.
Why the Same Fix Doesn’t Work Across Every Cap Style
A pull compensation setting that solves puckering on a structured six panel cap won’t necessarily solve it on an unstructured dad hat, since the two styles behave differently under the needle. Diagnosing a cap embroidery problem accurately means knowing which specific cap style is being used, not just applying a generic fix pulled from a different production context.

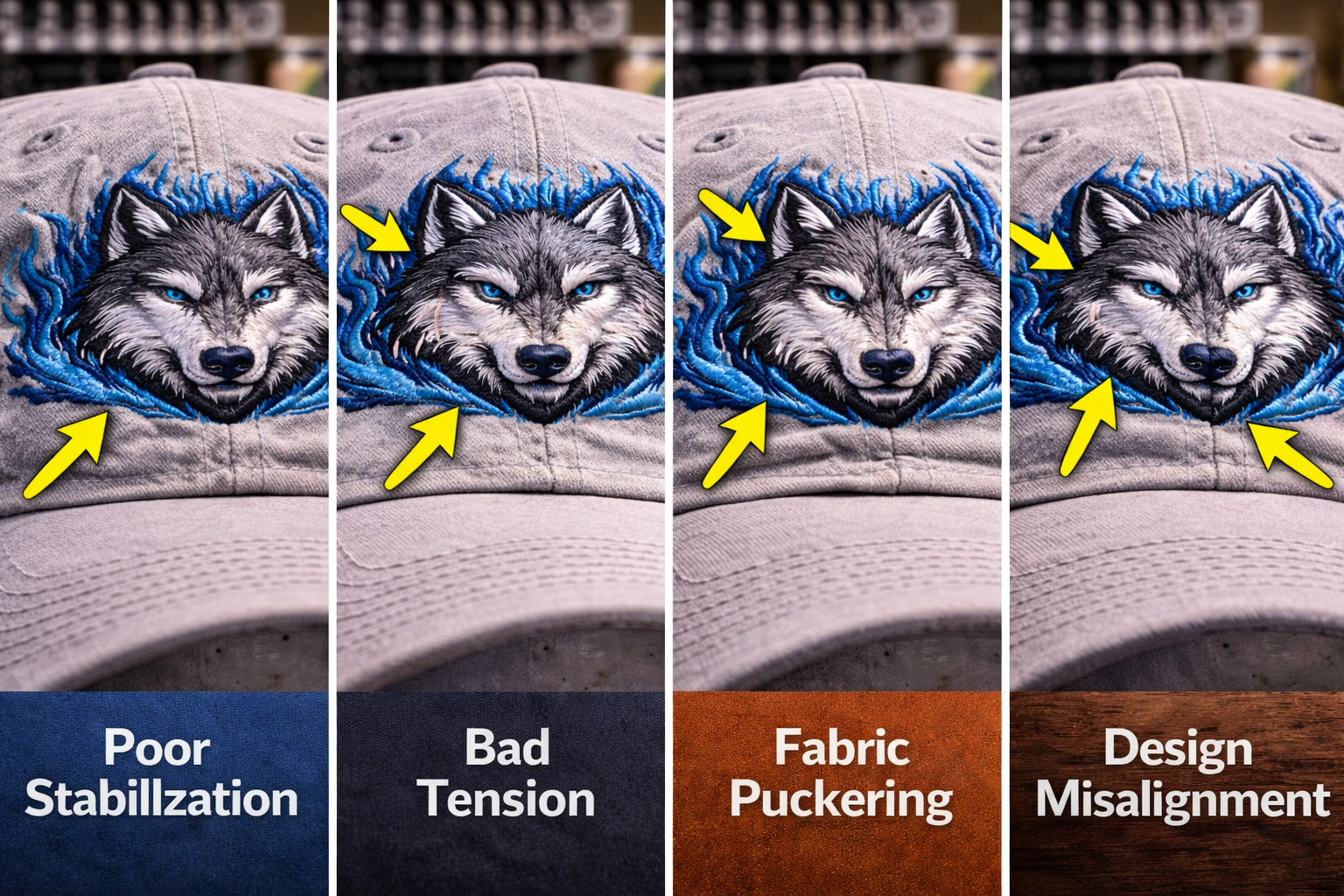

Side by Side: Symptom to Root Cause
| Symptom | Likely Root Cause | Typical Fix |
|---|---|---|
| Puckering | Weak underlay or high density for the fabric | Adjust underlay type and reduce density |
| Stretched or warped shape | No pull compensation for the curve | Rebuild file with cap specific compensation |
| Thread breaks | Density too high or poor compensation | Reduce density, rework pull compensation |
| Bird nesting | Abrupt direction changes, weak underlay | Smooth stitch paths, strengthen underlay |
| Misalignment | Hooping error or missing placement markers | Confirm center point markers in the file |
A Diagnostic Checklist Before Reordering a Cap File
- Identify the exact symptom first: puckering, warping, breaks, nesting, misalignment or illegible text.
- Confirm which cap style, structured or unstructured, the file was built for.
- Check whether the file includes cap specific underlay and pull compensation, not flat garment settings.
- Verify placement markers exist and were used correctly during hooping.
- Request a rebuild targeted at the specific diagnosed cause rather than a full redigitize from scratch.
A Real Order, Broken Down
A Texas youth football league brought in a batch of caps with visible puckering around the team logo after a run at their local embroiderer. Reviewing the file showed light underlay that hadn’t been adjusted for the structured cap’s curved front panel, a common root cause rather than a machine fault.
Rebuilding the file with proper cap specific underlay and adjusted density resolved the puckering on the next run without any changes needed at the embroiderer’s machine settings, confirming the issue traced back to the digitizing file rather than production error.
Who Builds These Files
USA Digitizing Pro has diagnosed and rebuilt cap embroidery files from its Texas studio since 2015, correcting underlay, density and pull compensation issues specific to cap production. Standard turnaround runs 2 to 4 hours, with every file backed by a money back quality guarantee.
Frequently Asked Questions
Underlay and density settings not matched to the cap’s curved panel and specific fabric are the most common root cause across puckering, warping and thread break issues.
Not always. A digitizing file with abrupt stitch direction changes or weak underlay can make bird nesting far more likely even with correctly set machine tension.
This usually means the file wasn’t built with pull compensation for the cap’s curved surface, so the shape that looks correct flat on screen distorts once actually stitched on the curve.
Yes, embroidery has a physical minimum readable size and text digitized below that threshold often blurs into an unreadable shape once stitched, especially in the limited space on a cap.
Not always. The two styles behave differently under the needle, so a fix effective on a structured cap may need adjustment to work on an unstructured one.
Checking whether the file includes cap specific underlay, density and pull compensation is the first step. If those settings are missing or generic, the file itself is the likely cause rather than the machine.
Sometimes a targeted rebuild of just the underlay and stitch order between the affected color blocks resolves it without needing to redigitize the entire design.
This can happen when underlay was borderline adequate initially but wasn’t strong enough to hold the design fully stable through repeated washing and wear.
Not always. Many issues can be corrected with a targeted adjustment to the specific setting causing the problem rather than rebuilding the entire file from scratch.
Check the digitizing file’s underlay, density and pull compensation settings first, since a consistent problem across an entire batch usually points to the file rather than a one off machine or hooping error.
Getting Cap Embroidery Right the First Time
Cap embroidery problems almost always have a specific, diagnosable cause rather than being random bad luck and most trace back to a digitizing file that wasn’t built with the cap’s curved panel and fabric in mind. Working through the symptom, whether it’s puckering, warping, thread breaks, bird nesting, misalignment or illegible text, points to a specific fix rather than a guess. USA Digitizing Pro diagnoses and rebuilds cap files from its Texas studio. Reach the team at sales@usadigitizingpro.com or +1 (830) 321 7832.
