Applique Digitizing Stitch Count Reduction: Techniques That Work 2026
Published August 17, 2026 | By USA Digitizing Pro Team
Switching a large design from full embroidery to applique cuts stitch count dramatically on its own. What most buyers miss is that the applique file itself still has room to move, sometimes another twenty or thirty percent, depending on how the border, tackdown and layering are handled. Applique digitizing stitch count reduction works as a set of specific levers rather than one decision and knowing which ones are safe to pull keeps runtime down without the edge lifting after a dozen washes.
Quick Answer at a Glance
| Question | Answer |
|---|---|
| What carries most of an applique file’s stitch count? | The satin border, since it runs the full perimeter at high density |
| Which lever gives the biggest safe reduction? | Border width, tuned to the design size rather than left at a default |
| Can the tackdown stitch be reduced? | Yes, switching from zigzag to a running or E stitch cuts count on stable fabrics |
| Does multi color applique save more than embroidery? | Yes, layered applique replaces multiple large fill areas at once |
| How much reduction is realistic? | Often twenty to thirty percent beyond the baseline applique conversion |
| When does reduction go too far? | When the border stops holding the fabric edge through washing |
| What does applique digitizing cost? | Starting at $15 for designs under 5 inches, larger work quoted individually |
Where Applique Stitch Count Actually Goes
Before cutting anything, it helps to know what the count is made of. An applique file isn’t one continuous stitch job. It’s three separate stitch elements running in sequence around a piece of fabric and they contribute very unevenly to the total.
The Three Stitch Elements in Every Applique File
First comes the placement stitch, a simple outline showing the operator exactly where the applique fabric goes. Second is the tackdown, which holds that fabric flat once positioned. Third is the satin border, which covers the raw cut edge and does the real work of securing the piece. For the full sequencing of these steps including the machine stops between them, the applique digitizing walkthrough covers each stage in order.
Why the Border Dominates the Count
Placement and tackdown are both light, often just a few hundred stitches on a moderate design. The satin border is the heavy element, since it runs the entire perimeter at a density high enough to fully cover the fabric edge with no gaps. On a typical applique letter the border can account for well over half the file’s total count, which is exactly why it’s the first place to look when reducing.
The Levers That Reduce Count
Four adjustments account for nearly all realistic reduction in an applique file. Each one trades a small amount of margin for a measurable drop in count and the right combination depends on the design size and the fabric it’s headed onto.
Border Width and Density
A satin border left at a generic default is often wider than the design needs. Narrowing it even slightly cuts count across the entire perimeter and on a large letter that perimeter is long. Density matters just as much: a border packed tighter than necessary for the fabric adds stitches without adding hold. Both settings should follow the specific design size and fabric rather than a house default applied to everything.
Tackdown Stitch Selection
The default tackdown is often a zigzag, which is secure but stitch heavy. On stable fabrics like twill, a simple running stitch or an E stitch holds the applique perfectly well until the border goes down, at a fraction of the count. On stretchy or loosely woven applique fabric a zigzag is worth keeping, so this lever depends entirely on material.
Placement Stitch Spacing
The placement outline exists only so the operator can position the fabric accurately. It doesn’t need to be dense. Widening the stitch spacing on this element cuts a few hundred stitches with zero effect on the finished piece, since the placement line gets covered by the border anyway.
Multi Layer Applique for Multi Color Designs
A two color design normally means two large fill areas in full embroidery. Built as layered applique, both become fabric with only borders stitched, compounding the savings. This is where applique reduction gets most dramatic on large format work and it’s the approach behind most varsity lettering. For how the two methods compare structurally, the applique versus embroidery file comparison breaks down what each layer contributes.
Measuring the Reduction
Reduction only matters if you can see it in numbers and those numbers only matter when translated into production terms. Two checks turn a stitch count change into something a buyer can actually evaluate.
Comparing Counts Before and After
Ask for the stitch count on both the original file and the revised one. Any competent digitizing software reports it directly, so this is a two minute check rather than an estimate. If a digitizer can’t state the count for a file they built, that’s worth questioning on its own. For working out roughly where a design should land before ordering, the stitch count estimator walkthrough maps complexity to expected ranges.

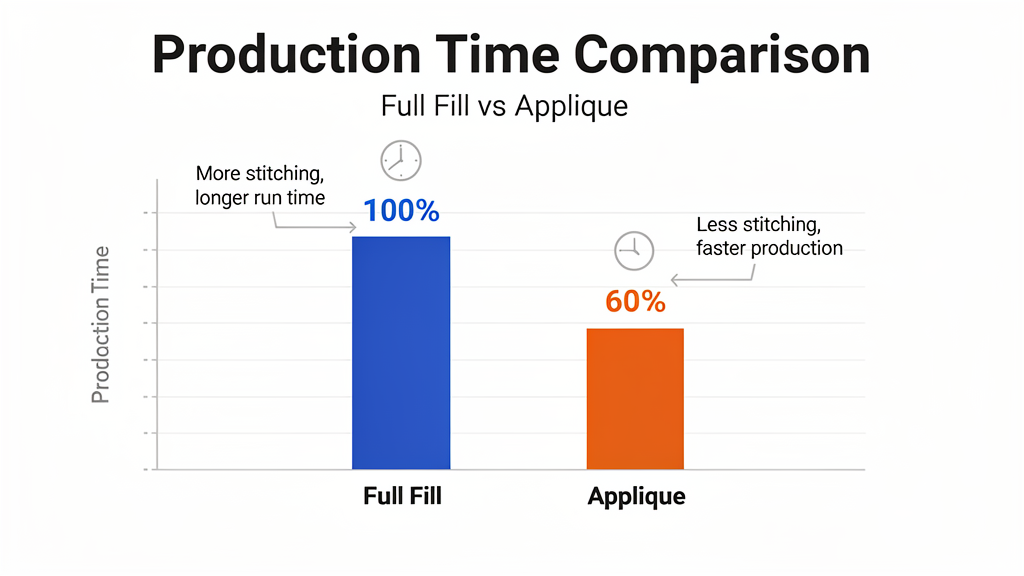

Translating Count Into Runtime and Cost
A commercial machine running around 800 stitches per minute turns a 4,000 stitch reduction into roughly five minutes saved per garment on a single head. Across a 300 piece run that’s meaningful machine time and it compounds with every reorder of the same design. the production cost breakdown covers how runtime, thread breaks and reject rate stack up across a full run.
Where Reduction Starts Hurting Quality
Every lever has a floor. Push past it and the savings show up as a garment that fails in the wash rather than a cheaper run. Three failure modes account for almost all over reduction problems.
Borders Cut Too Narrow
The satin border has one job beyond looking clean: holding the fabric edge down permanently. Narrow it too far and the raw cut edge starts working loose after repeated washing, especially at corners and tight curves where stress concentrates. A border that looked acceptable on the sample can still fail at fifty wash cycles.
Tackdown Weakened Too Far
Switching from zigzag to a running stitch works on stable twill. Do the same on a stretchy knit applique fabric and the material can shift or ripple before the border goes down, leaving a visible wave in the finished piece. The tackdown choice has to match the applique fabric, not just the desire for a lower count.
Fabric Choices That Force Count Back Up
A loosely woven or fray prone applique fabric needs a wider, denser border to contain its edge, which pushes count right back up and can erase the savings from every other lever. Choosing a stable, clean cutting fabric in the first place is itself a stitch count decision. the applique fabric selection guide covers which materials cut and hold cleanly and the fabric placement guide covers positioning them accurately at the machine stop.
Applying This to Your Own Files
Turning these levers into an actual order means asking for specific things rather than requesting a vague reduction. The checklist below covers what to specify and the example after it shows the levers working together on a real program.
Reduction Checklist
- Request the current stitch count so there’s a baseline to measure against.
- Ask whether the satin border width is tuned to this design’s size or left at a default.
- Specify the applique fabric so the tackdown stitch can be matched to it.
- Ask whether placement stitch spacing has been widened, since it costs nothing to do.
- On multi color designs, ask whether layered applique is viable instead of separate fills.
- Request a stitch out and wash test before committing a reduced file to a full production run.
A Real Order, Broken Down
A Texas spirit wear supplier ran eight inch varsity letters that came in at roughly 21,000 stitches per jacket from a previous vendor. The border sat at a generic default width, the tackdown was a full zigzag on stable twill and the placement outline was stitched at fill density for no reason.
Rebuilding brought it to about 14,500 stitches. The border was narrowed to suit the letter size while staying wide enough to hold twill through washing, the tackdown switched to a running stitch appropriate for that fabric and the placement spacing widened. Roughly eight minutes came off each jacket’s runtime and a wash test at twenty cycles showed no edge lift.
Who Builds These Files
USA Digitizing Pro has built and rebuilt applique files from its Texas studio since 2015, tuning border width, tackdown selection and layering to the specific fabric and design size rather than applying blanket settings. Pricing starts at $15 for designs under 5 inches, with larger work quoted individually and a money back quality guarantee on every file. Full service details are on the applique digitizing page.
FAQs
Converting from full embroidery to applique cuts count dramatically on large designs. Beyond that baseline, tuning border width, tackdown and placement spacing commonly finds another twenty to thirty percent.
The satin border, since it runs the full perimeter at high density to cover the fabric edge. It often accounts for more than half the total count.
Within limits. The border still has to hold the raw fabric edge down through repeated washing, so narrowing it past that point causes edge lift rather than savings.
A running stitch or E stitch uses far fewer than a zigzag and works well on stable fabrics like twill. Stretchy or loosely woven applique fabrics generally still need a zigzag.
No. It exists only so the operator can position the fabric and it gets covered by the border anyway, so widening its spacing saves stitches with no visible effect.
Compare the stitch count before and after, then verify with a stitch out and a wash test. A lower count that fails after washing isn’t a reduction, it’s a defect.
Yes. Fray prone or loosely woven fabrics need wider, denser borders to contain the edge, which pushes count back up regardless of other adjustments.
Usually yes on large designs, since both color areas become fabric with only borders stitched, compounding the savings versus two large embroidered fills.
Directly, since count determines machine runtime per garment. A few thousand stitches saved translates to minutes per piece, which compounds across the run and every reorder.
Pricing starts at $15 for designs under 5 inches, with larger or more complex designs quoted individually.
Cutting Count Without Cutting Corners
Applique digitizing stitch count reduction is four specific levers, not a single setting: border width and density, tackdown selection, placement spacing and layering on multi color work. Each has a floor set by the fabric and the wash environment and staying above that floor is what separates a genuine reduction from a garment that fails in three months. Measure the count, run a wash test and the savings hold up. For the stitch types behind each of these elements, the embroidery stitch types overview covers the fundamentals.
