Types of Color Separations for Screen Printing: Complete Reference (2026)
Published August 17, 2026 | By USA Digitizing Pro Team
Six distinct separation methods cover essentially every screen printing job and most confusion comes from people treating them as two: spot and process. That split leaves out index, simulated process, grayscale and duotone, which between them handle a huge share of real production work. Knowing all six types of color separations for screen printing means matching the method to the job instead of forcing every design through whichever approach a shop defaults to.
The Six Types at a Glance
| Separation Type | What It Does | Best Fit |
|---|---|---|
| Spot color | Each flat color gets its own screen and mixed ink | Logos, text, exact brand color matching |
| Index | Converts the image into square pixels of set colors, no halftone dots | Detailed art with a fixed limited palette |
| Four color process (CMYK) | Cyan, magenta, yellow, black halftones blend optically | Photographs on white or light garments |
| Simulated process | Opaque set inks with halftone screening applied | Detailed or photographic art on dark garments |
| Grayscale | Single ink printed at varying halftone densities | Single color tonal images and shading |
| Duotone | Two inks, each carrying part of the tonal range | Two color images needing depth beyond flat shapes |
1. Spot Color Separation
Spot color separation splits artwork into individual flat colors, each printed through its own screen with a specific mixed ink, usually matched to a Pantone reference. There’s no halftone dot pattern inside a spot color area, so edges stay crisp and the color matches the brand reference exactly rather than being approximated. This is the default for logos, team names and any design built from solid shapes. The tradeoff is that every added color means another screen, so spot color stops being economical once a design needs many distinct flat colors. For a direct comparison of this method against process approaches, the spot versus process breakdown covers how each file gets constructed.
2. Index Separation
Index separation is the type most buyers have never heard of and it solves a specific problem well. Rather than using halftone dots of varying size, index converts the image into a grid of same size square pixels, each assigned one of a limited set of chosen colors. The eye blends these squares the way it blends halftone dots, but without the moire patterns and registration headaches that halftones can introduce on textiles. Index handles detailed artwork with a fixed palette cleanly and prints reliably on presses that struggle with fine halftone registration.
3. Four Color Process (CMYK) Separation
Four color process splits an image into cyan, magenta, yellow and black halftone channels that blend optically on the garment to reproduce full color range. It’s the standard approach for photographic reproduction and its four base screens stay constant regardless of how many colors the finished image appears to contain. The catch is that CMYK inks are semi transparent and assume a white or very light garment underneath. Print the same separation on a dark shirt without adjustment and the colors read muddy or vanish. For how run size and garment color affect this choice economically, the run size and setup cost guide works through the numbers.

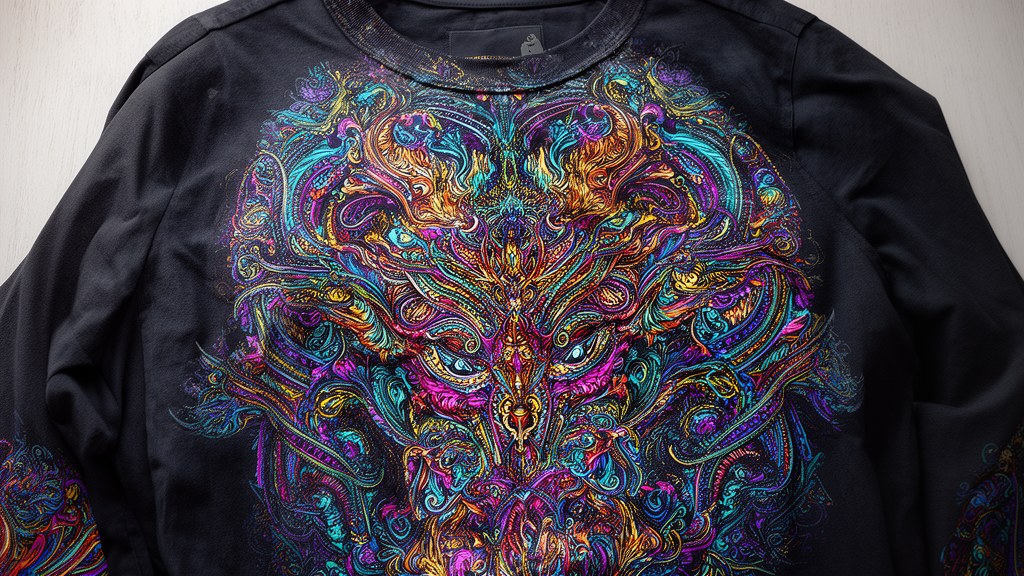

4. Simulated Process Separation
Simulated process sits between spot and CMYK and is arguably the most useful method for garment printing specifically. It uses a chosen set of opaque inks, similar to spot color, but applies halftone screening to extend the tonal range, similar to process. Because the inks are opaque rather than transparent, simulated process reads correctly on black and dark garments where standard CMYK would fail entirely. Most detailed full color artwork printed on dark shirts is running simulated process, whether the buyer knows the term or not.
5. Grayscale Separation
Grayscale separation uses a single ink printed at varying halftone densities to reproduce a tonal image. A black and white photograph printed in one ink is the clearest example. Areas of dense halftone dots read dark, sparse dots read light and the single screen carries the entire tonal range. It’s the most economical way to print a genuinely tonal image, since it needs just one screen, though it obviously can’t reproduce color.
6. Duotone Separation
Duotone extends the grayscale concept to two inks, with each ink carrying part of the tonal range. This produces noticeably more depth and richness than a single ink grayscale while still using only two screens. Duotone is common for vintage styled or stylized image reproduction where a full color print isn’t the goal but a flat two color spot job would look too simple for the artwork.
What Actually Decides the Type: Three Variables
The separation type follows from three things, in this order. First, what the artwork actually is: flat shapes point to spot or index, continuous tone points to process, simulated process, grayscale or duotone. Second, the garment color: dark garments push toward simulated process or index with an underbase and rule out plain CMYK. Third, press capability and ink count: a six color press handles simulated process comfortably, while a smaller press may make index or spot the practical ceiling.
Why Garment Color Overrides Almost Everything Else
Buyers routinely choose a separation method based on the artwork alone, then discover the garment color invalidates it. CMYK on black reads muddy. Spot color on dark garments needs a white underbase screen added, raising screen count. Index and simulated process both handle dark garments well because they use opaque inks. Checking garment color before choosing a method saves a rebuild more often than any other single step.
Why the Separation File Itself Differs by Type
Each type produces a structurally different file. Spot files carry flat shapes with defined edges. Index files carry a pixel grid of assigned colors. Process files carry halftone dot patterns per channel calculated from image data. Simulated process files carry both flat areas and screened areas across chosen inks. A file built for one type can’t be repurposed for another without rebuilding it from the source artwork, which is why the vector source matters. If the artwork is starting from a photo or scan, converting the raster image to clean vector paths comes before separation, not after.
Side by Side: Screens, Garment and Detail Capacity
| Type | Typical Screen Count | Works on Dark Garments |
|---|---|---|
| Spot color | One per flat color | With a white underbase added |
| Index | One per chosen palette color | Yes, with underbase |
| Four color process | Four (CMYK) | Not without significant adjustment |
| Simulated process | Varies, often five to eight | Yes, this is its strength |
| Grayscale | One | With underbase |
| Duotone | Two | With underbase |
Choosing the Right Type for Your Job
- Identify whether your artwork is flat and color defined or continuous tone.
- Check the garment color before anything else, since dark garments rule out plain CMYK.
- Confirm how many colors your press can run in one pass.
- Decide whether any brand color needs exact Pantone matching, which points to spot ink.
- Ask about index separation if your press struggles with halftone registration on textiles.
- Request a printed sample before committing to a full run on any process based method.
A Real Order, Broken Down
A Texas outdoor apparel brand submitted three designs in one batch: a two color flat logo, a detailed mountain illustration for black hoodies and a vintage styled photo print for cream tees. Each went through a different separation type. The flat logo ran spot color, two screens, Pantone matched to their brand guide. The mountain illustration on black ran simulated process, since the opaque inks hold detail on a dark base where CMYK would have gone muddy. The vintage photo on cream ran duotone, two inks carrying the tonal range for the aged look the brand wanted. For brands running the same artwork across both printing and stitching, the print versus embroidery artwork requirements covers what changes between the two.
Who Builds These Files
USA Digitizing Pro has separated files across all six methods from its Texas studio since 2015, choosing the type based on artwork, garment color and press capability rather than defaulting to one approach. Pricing starts at $15 for designs under 5 inches, with larger or more complex work quoted individually and every order carries a money back quality guarantee. Full details of the separation workflow are on the color separation service page and clean source artwork can be prepared through the vector artwork service when a usable vector file doesn’t exist yet.
Frequently Asked Questions
Six main types cover essentially all production work: spot color, index, four color process (CMYK), simulated process, grayscale and duotone.
Index converts an image into a grid of same size square pixels in a limited set of chosen colors, rather than using halftone dots of varying size. This avoids moire patterns and the fine registration demands halftones place on a press.
Simulated process, since it uses opaque inks that read correctly on a dark base. Index also works well with an underbase, while plain CMYK generally does not.
Four color process uses transparent CMYK inks assuming a light garment. Simulated process uses opaque chosen inks with halftone screening, so it reads correctly on dark garments.
For a two color image needing tonal depth rather than flat shapes, common in vintage or stylized image reproduction where a full color print isn’t the goal.
Usually, though it can be any single ink. The tonal range comes from varying halftone density across one screen rather than from multiple colors.
Not without rebuilding. Each type produces a structurally different file, so switching means separating again from the source artwork.
Grayscale uses one screen, duotone two. Among color methods, four color process uses a fixed four regardless of image complexity.
Vector is strongly preferred for spot and index work. Process methods can separate from a high resolution raster image, though clean source art improves the result in every case.
Pricing starts at $15 for designs under 5 inches, with larger or more complex work quoted individually based on color count and detail.
Matching the Method to the Job
Types of color separations for screen printing come down to six methods and picking correctly means checking your artwork, your garment color and your press capacity in that order rather than defaulting to whatever the shop usually runs. Spot for flat brand work, index for detailed limited palette art, CMYK for photos on light garments, simulated process for detail on dark, grayscale and duotone for tonal single or two ink work. For the step by step production side of getting separations onto screens, the separation workflow walkthrough covers what happens after the file is built.
